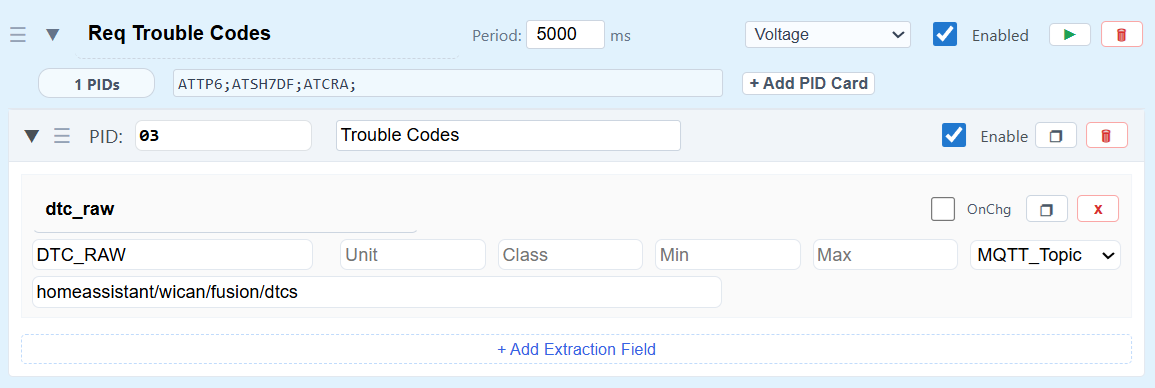

Reading & Clearing DTCs (Trouble Codes)

      - name: "F-350 Active DTCs"
        default_entity_id: "sensor.f350_dtcs"
        unique_id: "f350_dtcs"
        device: *f350_device
        state_topic: "homeassistant/wican/f350/dtcs"
        icon: mdi:engine-outline
        # 1. Keep the main state under 255 characters
        value_template: >-
          {%- set ns = namespace(payload='') -%}

          {# Safety check: Only loop items if it's actually a JSON dictionary #}
          {%- if value_json is defined and value_json is mapping -%}
            {%- for key, val in value_json.items() -%}
              {%- set clean_val = val | string | replace(' ', '') | upper -%}
              {%- set idx = clean_val.find('43') -%}
              {%- if idx != -1 -%}
                {%- set ns.payload = clean_val[idx:] -%}
              {%- endif -%}
            {%- endfor -%}
          {%- else -%}
            {# If it's a raw string, bypass JSON parsing entirely #}
            {%- set clean_val = value | string | replace(' ', '') | upper -%}
            {%- set idx = clean_val.find('43') -%}
            {%- if idx != -1 -%}
              {%- set ns.payload = clean_val[idx:] -%}
            {%- endif -%}
          {%- endif -%}

          {%- if ns.payload.startswith('43') and ns.payload | length >= 4 -%}
            {%- set count = ns.payload[2:4] | int(base=16, default=0) -%}
            {{- 'System Clear' if count == 0 else count ~ ' Active Codes' -}}
          {# THE MEMORY FIX: If the payload is bad/missing, echo our own last known state! #}
          {%- elif states('sensor.f350_dtcs') not in ['unknown', 'unavailable'] -%}
            {{- states('sensor.f350_dtcs') -}}

          {# If Home Assistant freshly rebooted and has no history, default to quiet. #}
          {%- else -%}
            System Clear
          {%- endif -%}

        json_attributes_topic: "homeassistant/wican/f350/dtcs"
        json_attributes_template: >-
          {%- from 'ford_dtc.jinja' import get_meaning -%}
          {%- set ns = namespace(payload='', codes=[], details=[]) -%}

          {%- if value_json is defined and value_json is mapping -%}
            {%- for key, val in value_json.items() -%}
              {%- set clean_val = val | string | replace(' ', '') | upper -%}
              {%- set idx = clean_val.find('43') -%}
              {%- if idx != -1 -%}
                {%- set ns.payload = clean_val[idx:] -%}
                {%- set count = ns.payload[2:4] | int(base=16, default=0) -%}
                {%- if count > 0 -%}
                  {%- for i in range(count) -%}
                    {%- set offset = 4 + (i * 4) -%}
                    {%- if ns.payload | length >= offset + 4 -%}
                      {%- set dtc_hex = ns.payload[offset:offset+4] -%}
                      {%- set first_char = dtc_hex[0] -%}
                      {%- set prefix = {'0':'P0', '1':'P1', '2':'P2', '3':'P3', '4':'C0', '5':'C1', '6':'C2', '7':'C3', '8':'B0', '9':'B1', 'A':'B2', 'B':'B3', 'C':'U0', 'D':'U1', 'E':'U2', 'F':'U3'} -%}
                      {%- set dtc = prefix.get(first_char, 'P0') ~ dtc_hex[1:] -%}
                      {%- set meaning = get_meaning(dtc) | trim -%}
                      {%- set ns.codes = ns.codes + [dtc] -%}
                      {%- set ns.details = ns.details + [dtc ~ ': ' ~ meaning] -%}
                    {%- endif -%}
                  {%- endfor -%}
                {%- endif -%}
              {%- endif -%}
            {%- endfor -%}
          {%- endif -%}

          {# DIAGNOSTIC X-RAY ADDED TO JSON OUTPUT #}
          {{- {"active_codes": ns.codes, "descriptions": ns.details, "debug_payload": ns.payload, "debug_count": count} | tojson -}}

{% macro get_meaning(dtc) %}
{% set dtc_map = {
  'U060F': 'Lost Communication with Mass or Volumn Air Flow Sensor A',
  'U068B': 'Lost Communication with Turbocharger/Supercharger Inlet Pressure Sensor A',
  'P2104': 'Electronic Throttle Control System - Forced Idle'
  /* ... paste your entire factory list here ... */
} %}
{{ dtc_map.get(dtc, 'Unknown Code - Refer to Factory Service Manual') }}
{% endmacro %}

type: vertical-stack
cards:
  # 1. THE INTERACTIVE CHECK ENGINE BUTTON
  - type: custom:button-card
    entity: sensor.f350_dtcs
    name: CHECK ENGINE
    icon: mdi:engine
    show_name: true
    show_icon: true

    tap_action:
      # Tapping toggles the dropdown list
      action: call-service
      service: input_boolean.toggle
      service_data:
        entity_id: input_boolean.show_f350_codes

    hold_action:
      # Long press sends Mode 04 to wipe the codes and turn off the CEL
      action: call-service
      service: mqtt.publish
      service_data:
        # ---> BASE TX TOPIC TO CLEAR CODES <---
        topic: "homeassistant/wican/f350/tx"
        payload: "04\r"

    styles:
      card:
        - width: 110px
        - height: 110px
        - background-color: '#1a1a1a'
      icon:
        - width: 50px
      name:
        - font-size: 10px
        - font-weight: bold

    state:
      - value: System Clear
        color: '#333333'
        styles:
          card:
            - border: none
          icon:
            - color: '#444'
            - animation: none
          name:
            - color: '#444'

alias: "F-350: New DTC Detected"
description: Alerts when the truck throws a new diagnostic trouble code.
trigger:
  - platform: state
    entity_id: sensor.f350_dtcs
condition:
  - condition: template
    value_template: "{{ 'Active Codes' in trigger.to_state.state }}"
  - condition: template
    value_template: "{{ trigger.from_state.state == 'System Clear' }}"
action:
  - service: notify.notify
    data:
      message: "Attention: The vehicle is reporting {{ trigger.to_state.state }}."
mode: single
